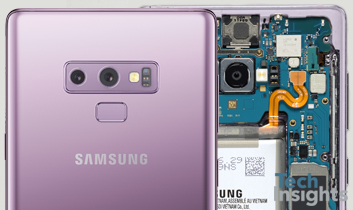

Samsung Galaxy Note9 Teardown

In the fast-paced world of technology, understanding the intricate details of our favorite gadgets can be both fascinating and enlightening. Samsung Galaxy Note9, a powerhouse smartphone, has captured the attention of tech enthusiasts worldwide. But what lies beneath its sleek exterior? Let's embark on a journey of discovery as we delve into a teardown analysis of the Samsung Galaxy Note9.

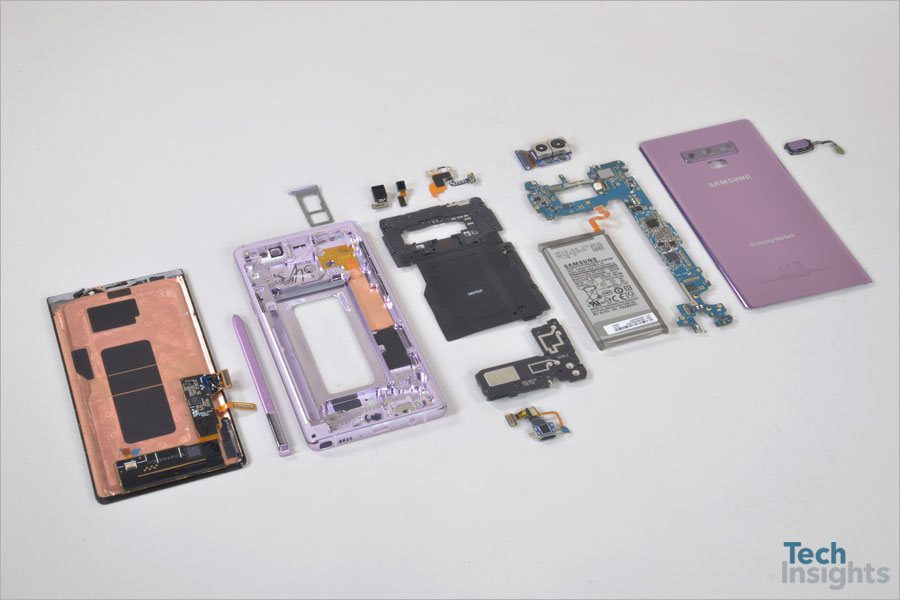

The teardown analysis of the Samsung Galaxy Note9 (AT&T SM-N960U, 128GB) conducted by TechInsights offers a rare glimpse into the smartphone's inner workings. From the stunning display to the powerful processor, each component plays a crucial role in delivering an exceptional user experience.

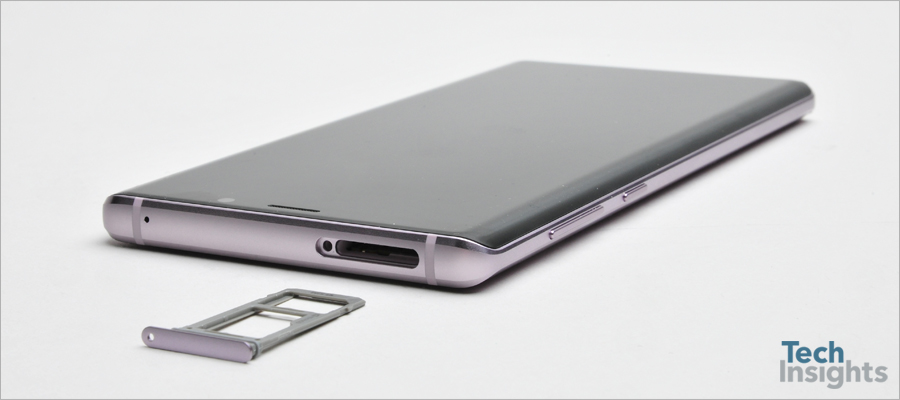

Samsung Galaxy Note9 Teardown

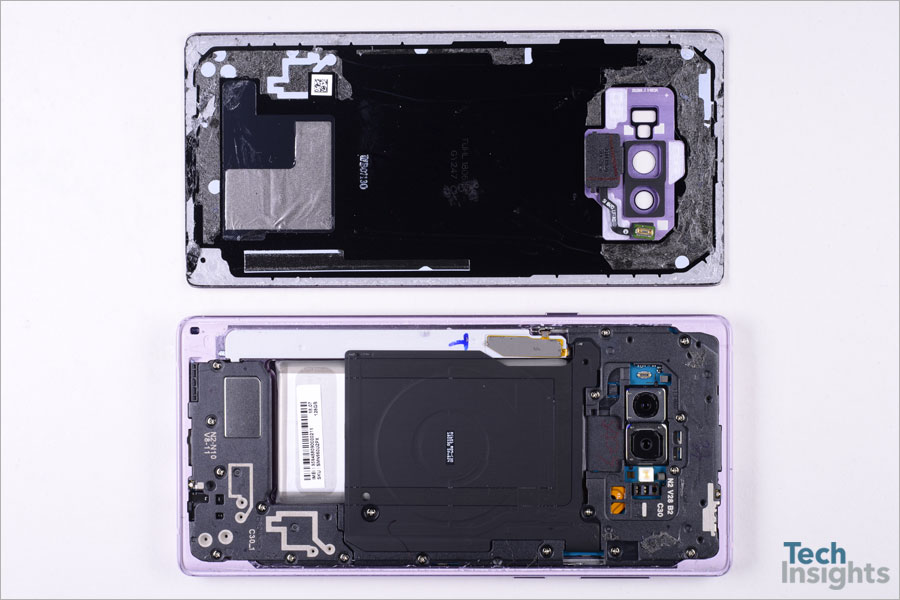

Samsung Galaxy Note9 Teardown

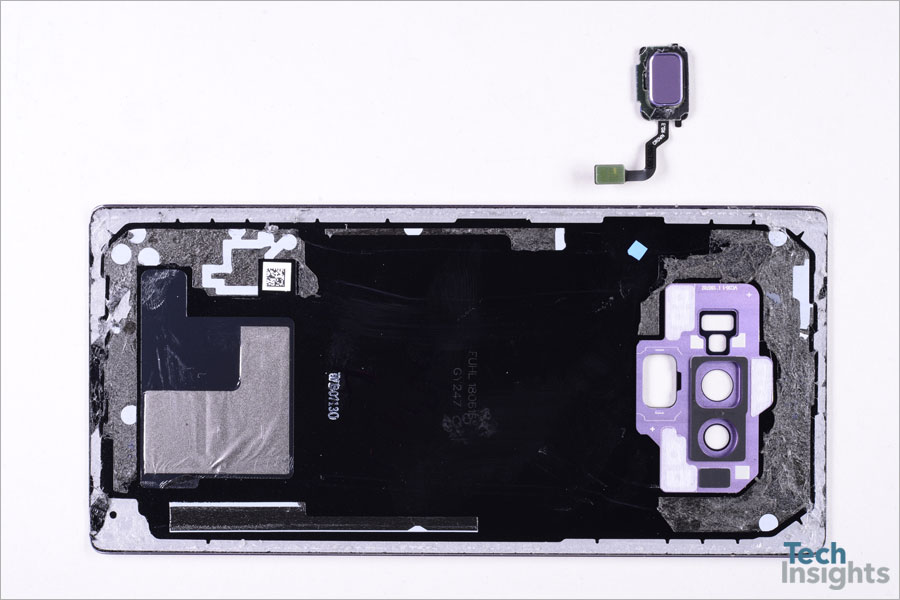

Samsung Galaxy Note9 Teardown

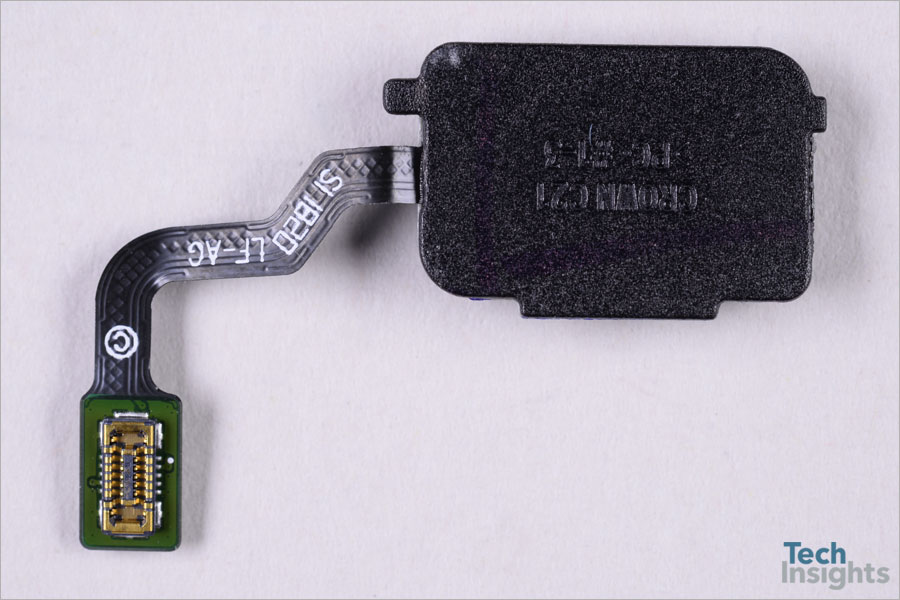

Samsung Galaxy Note9 Teardown

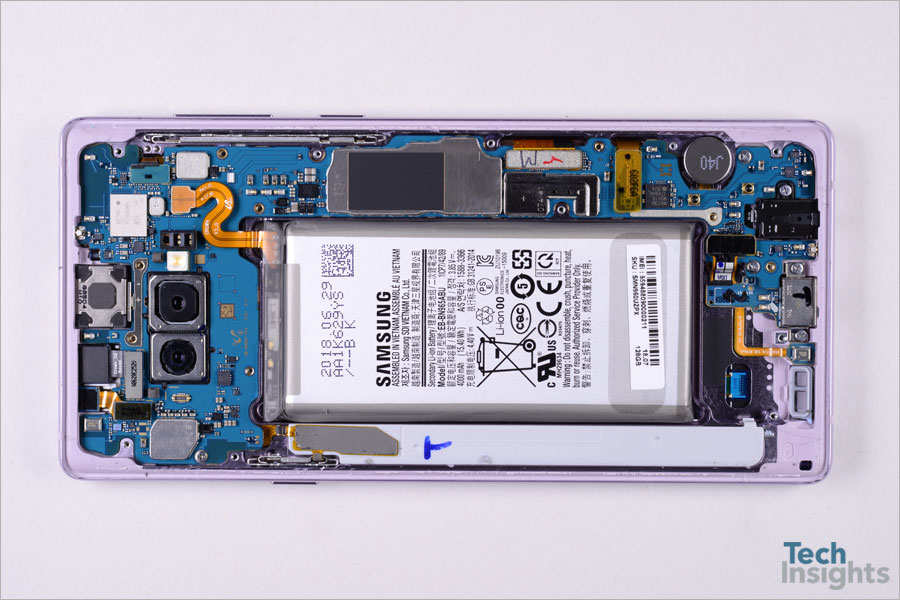

Samsung Galaxy Note9 Teardown

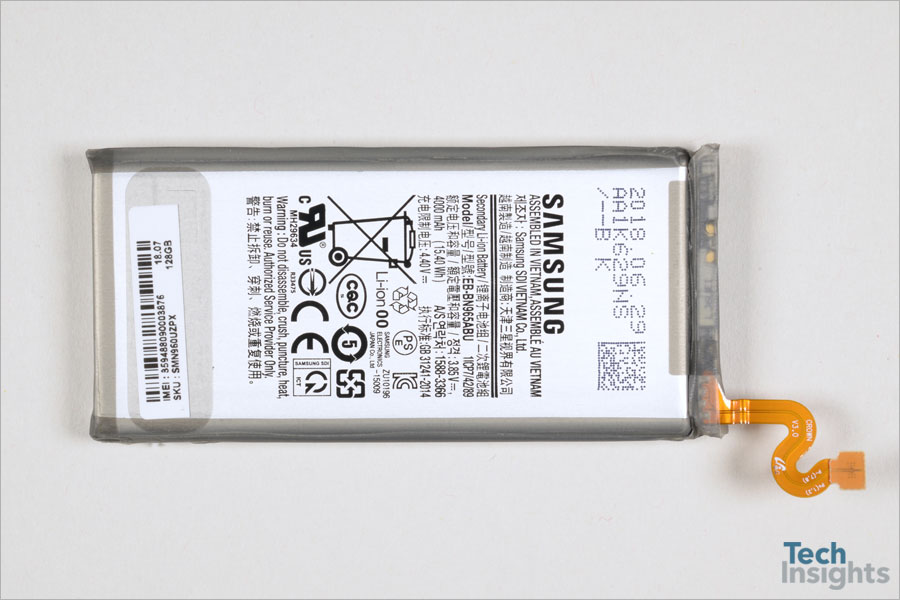

Samsung Galaxy Note9 Teardown

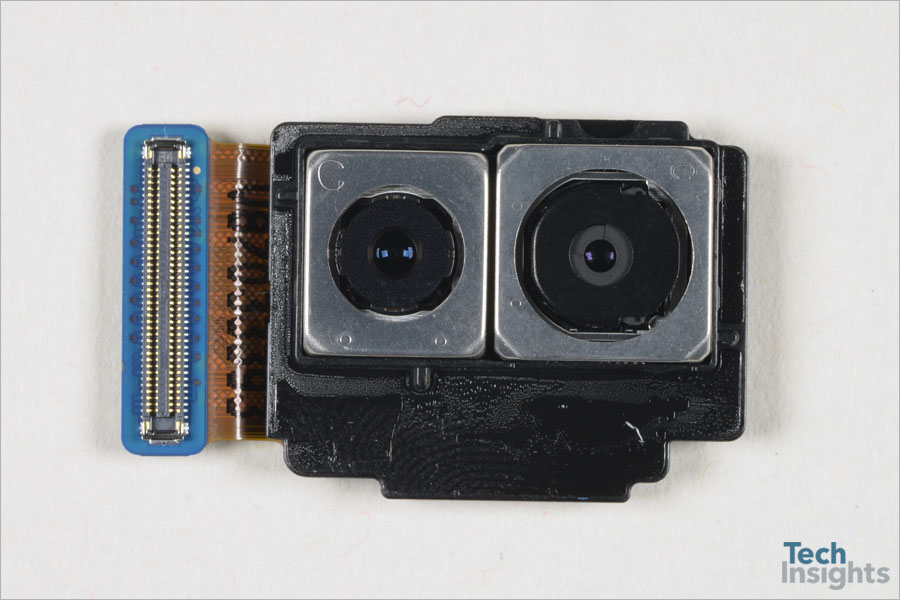

Samsung Galaxy Note9 Teardown
Samsung Galaxy Note9 Teardown

Mobile Chipset

Our AT&T Note9 model has the Qualcomm Snapdragon 845 Application Processor, along with the Samsung K3UH6H60AM-AGCJ 6GB LPDDR4X SDRAM, in a Package-on-Package (PoP). At present, the Snapdragon 845 is Qualcomm’s most advanced - and popular - Application Processor, and we have noted its design-wins in Samsung Galaxy S9/S9+ and many other flagship smartphones. We were hoping to find Samsung’s second generation 10 nm-class (1y nm) LPDDR4X mobile DRAM, but we will have to continue our search.

Since the Application Processor is Qualcomm’s Snapdragon 845 chipset solution, the RF Transceiver, PMIC and other components are also all from Qualcomm: RF Transceiver SDR845, PMIC PM845, and Envelope Tracking QET4100. Qualcomm also supplies the phone’s Display PMIC PM8005 and Audio Codec WCD9341.

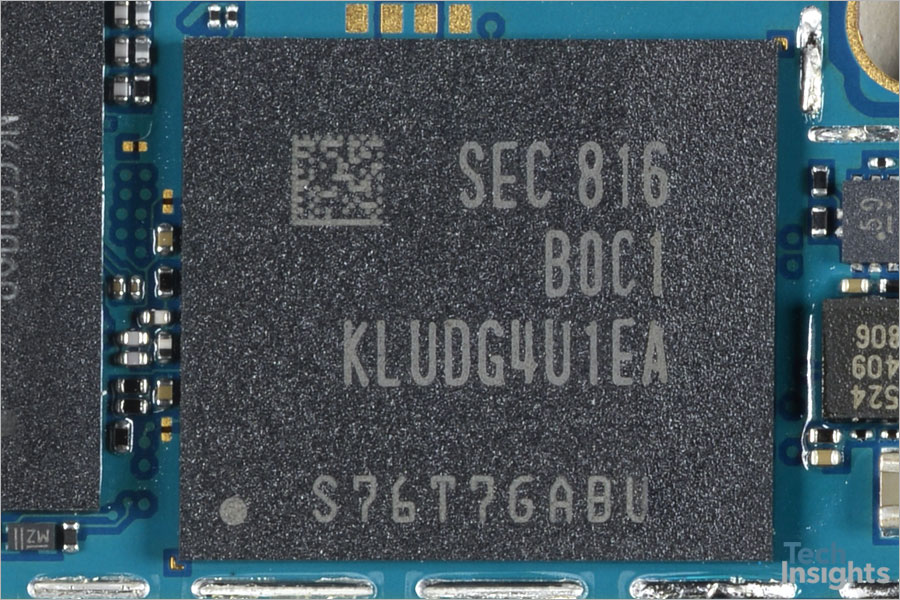

In our 128GB phone, we found the NAND Flash is supplied by Samsung itself - KLUDG4U1EA-B0C1 - a 128GB UFS 2.1 flash memory.

Maxim wins the sockets for the PMIC MAX77705 and Audio Amplifier MAX98512. The Power Amplifier and Front-Ends are supplied by Avago (Broadcom) AFEM-9096 FEM, Skyworks SKY78160-51 FEM, and Skyworks SKY77365-11 PAM.

The NFC Controller 80T17 is from NXP and the Wi-Fi/Bluetooth module KM8509176 is from Murata.

Samsung Galaxy Note9 Teardown

Samsung Galaxy Note9 Teardown

Samsung Galaxy Note9 Teardown
Samsung Galaxy Note9 Teardown
Samsung Galaxy Note9 Teardown
Samsung Galaxy Note9 Teardown
Samsung Galaxy Note9 Teardown
Samsung Galaxy Note9 Teardown
Samsung Galaxy Note9 Teardown

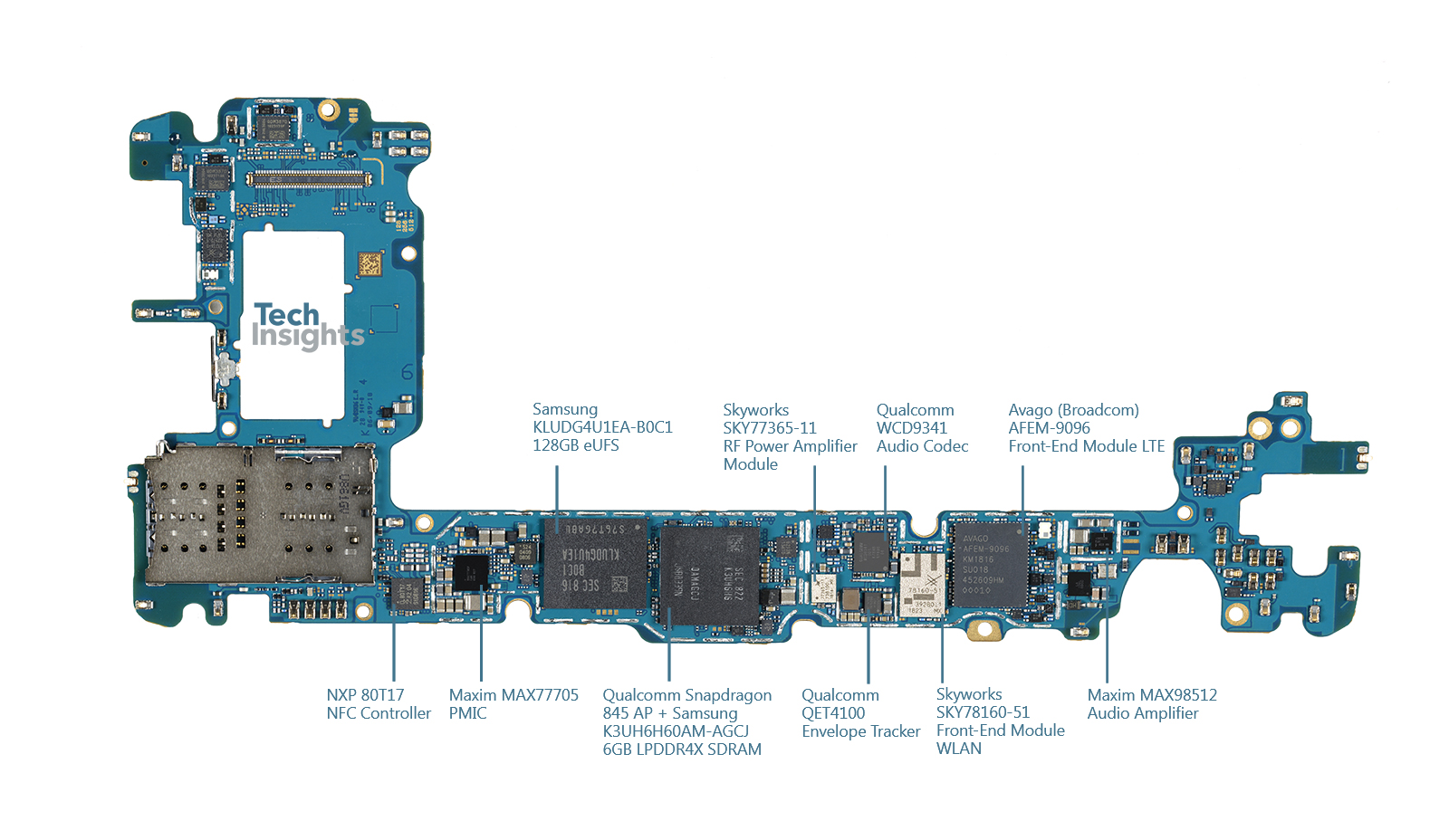

Samsung Galaxy Note9 Board Shots

NXP NFC Controller

NXP NFC Controller

Samsung Galaxy Note9 Board Shots
Samsung Galaxy Note9 Board Shots

The teardown analysis of the Samsung Galaxy Note9 offers a fascinating glimpse into the technological marvel that powers this iconic smartphone. From its innovative display technology to its powerful processor and advanced camera system, every component is meticulously designed to deliver an unparalleled user experience. As we continue to push the boundaries of innovation, the Samsung Galaxy Note9 stands as a testament to the relentless pursuit of excellence in the world of technology.
