The Evolution of STMicroelectronics BCD Technology

Posted: January 22, 2019
Contributing Author: Sinjin Dixon-Warren, PhD

TechInsights’ full analysis of the STMicroelectronics BCD9S referenced in this post is included in our new Power Semiconductor subscription, which addresses new technologies in the power semiconductor market, including GaN, SiC, plus Si MOSFET and IGBT devices.

TechInsights has been monitoring the evolution of STMicroelectronics Bipolar-CMOS-DMOS (BCD) technology for more than fifteen years, beginning in the year 2000 when we performed a structural and electrical characterization of a 0.8 µm BCD device with a 1999 mask date [1]. A few years later, in 2004, we analyzed the STMicroelectronics L6262S (VCM/Motor Controller) BCD integrated circuit, which had a 1998 mask date and 0.9 µm gate lengths [2]. The L6262S, shown in Figure 1, featured blocks of DMOS transistors along the edges of the die.



STMicroelectronics L6262S BCD Process Die Photograph

Figure 1 – STMicroelectronics L6262S BCD Process Die Photograph

BCD technology integrates CMOS logic, double diffused MOS transistors (DMOS), lateral diffused MOS transistors (LDMOS) and bipolar transistors into a single silicon die. The DMOS and LDMOS transistors are generally used to create high voltage or higher power output driver transistors, while the bipolar transistors provide analog functionality. STMicroelectronics is a market leader in BCD technology, which they claim to have invented in the mid-1980s [3]. The technology is also offered by other vendors, including Texas Instruments, Infineon, Atmel, Maxim and by major foundries, such as TSMC. TechInsights has reports on many of these competing technologies. Figure 2 shows a cross-section of the DMOS transistors found on the STMicroelectronics L6262S die.

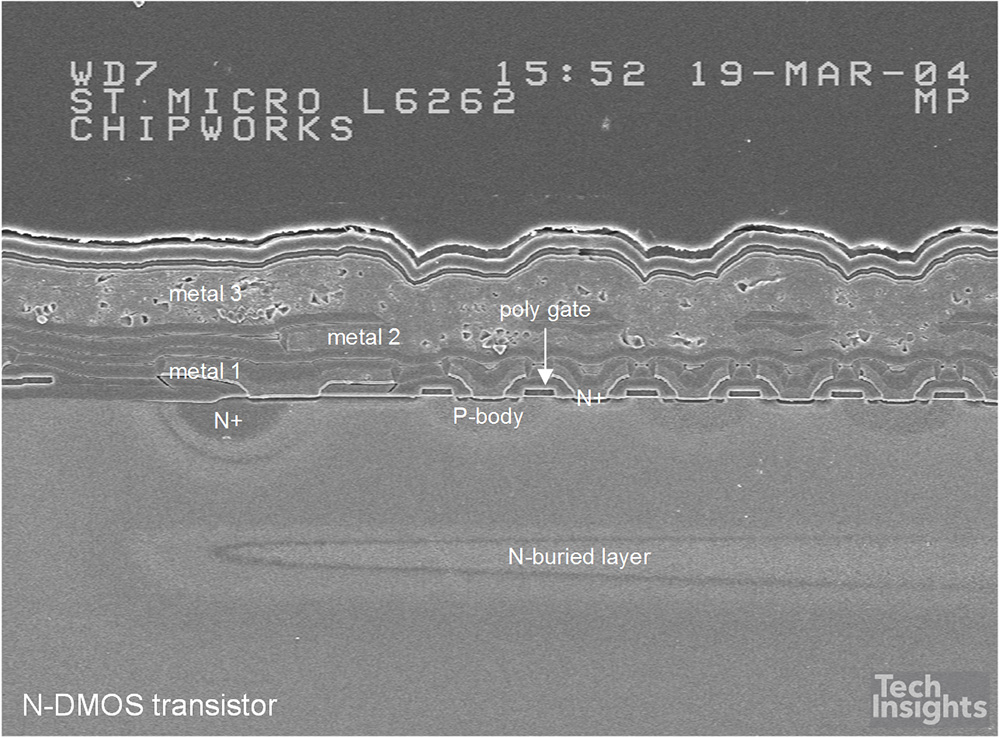

STMicroelectronics L6262S N-DMOS Transistors

Figure 2 – STMicroelectronics L6262S N-DMOS Transistors

STMicroelectronics now offers three main BCD technologies, denoted BCD6, BCD8 and BCD9, corresponding to 0.32 µm, 0.16 µm and 0.11 µm technology, as shown in Figure 3. They claim to have a 90 nm BCD10 technology in development [4]. They have regularly published papers on these technologies at the International Symposium on Power Semiconductor Devices (ISPSD) conferences. TechInsights has reports on various specific versions of these STMicroelectronics BCD technologies [1, 2, 5, 6, 7, 8, 9]

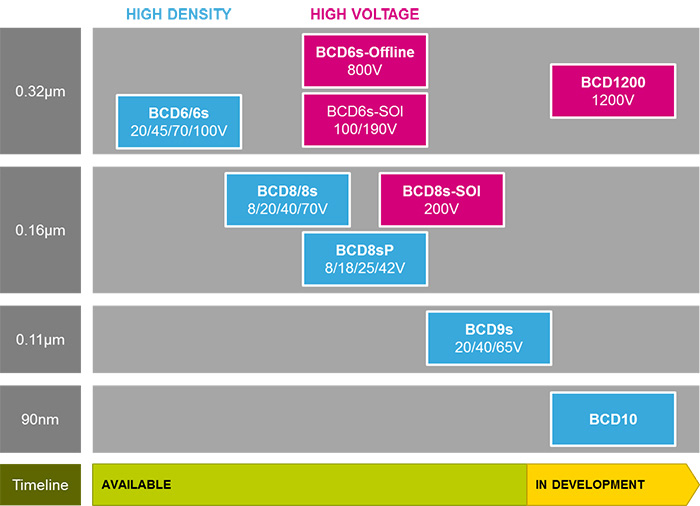

STMicroelectronics BCD Technologies (source: STMicroelectronics)

Figure 3 – STMicroelectronics BCD Technologies (source: STMicroelectronics)

Recently, TechInsights procures samples of the STMicroelectronics FDA801B-VYY 4x50 W class-D digital input power amplifier with I2C diagnostics, digital impedance meter and low voltage operation [10] which is fabricated with the new BCD9s technology [11]. A photograph of the FDA801B-VYY BCD9s die, deprocessed to diffusion, is shown in Figure 4. The die features blocks of analog, logic and LDMOS power transistors. We completed some preliminary analysis and have compared our findings with our previous analysis of STMicroelectronics BCD technologies.

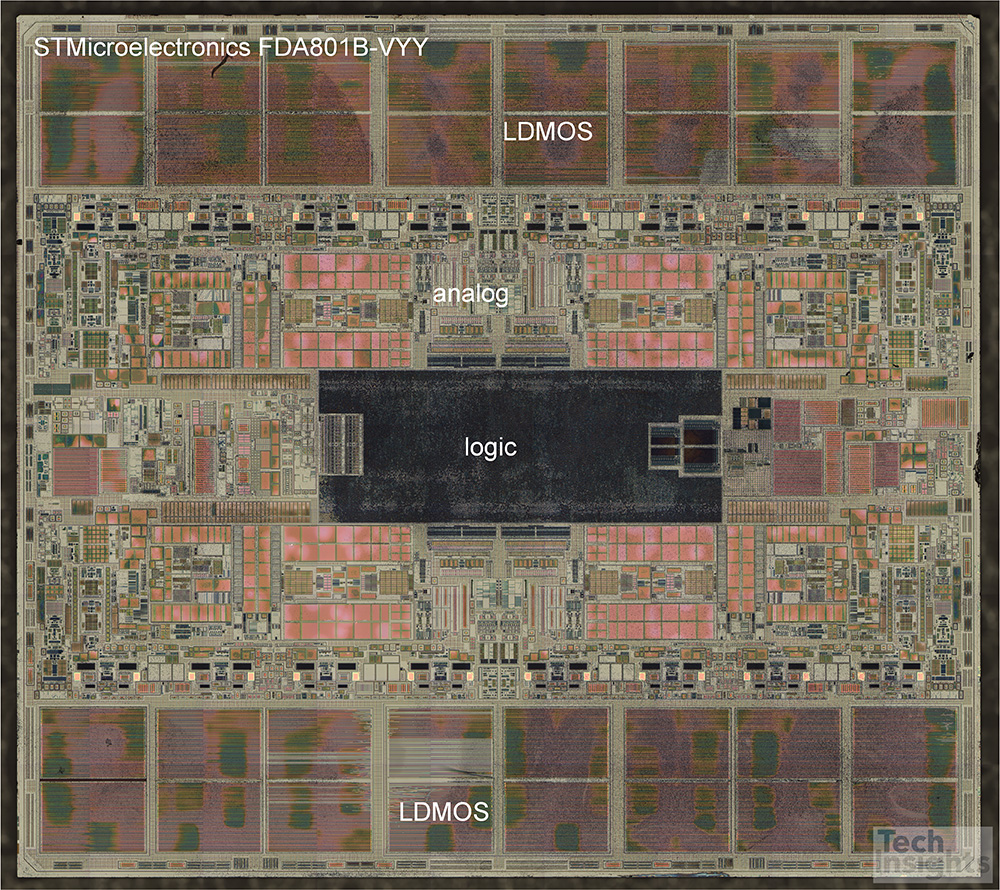

STMicroelectronics FDA801B-VYY BCD9s Process Diffusion Die Photograph

Figure 4 – STMicroelectronics FDA801B-VYY BCD9s Process Diffusion Die Photograph

Table 1 presents a summary of TechInsights process analysis findings for the series of different STMicroelectronics BCD technologies. In parallel with the rest of the semiconductor industry the trend has been towards smaller feature sizes, starting at about 1 µm for the BCD technologies in production around the year 2000. These early technologies featured DMOS transistors.

The BCD6 technology was released in about the year 2006 and featured 0.35 µm CMOS gates with three layers of aluminum metal planarized by chemical mechanical polishing (CMP). Figure 5 shows a photograph of the STMicroelectronics ST1S03 BCD6 die. A large DMOS switch transistor is found on the die. LDMOS transistors and NPN bipolar transistors were found and Local oxidization of silicon (LOCOS) isolation is used. Figure 6 shows a cross section of a typical LDMOS transistor found on the ST1S03 BCD6 die. The key characteristic of the LDMOS transistors is the presence of isolation and a drift region between the transistor gate and the drain contact. The gate extends over the isolation. These features allow the LDMOS transistor to support higher voltage bias between the source, which is at ground, and drain. Generally, a doped drift region extends beneath the gate resulting in a transistor channel which is shorter than the physical gate length. LDMOS transistors are challenging to design and manufacture, due to the large number of additional masks and implants required, as compared to standard CMOS technology.

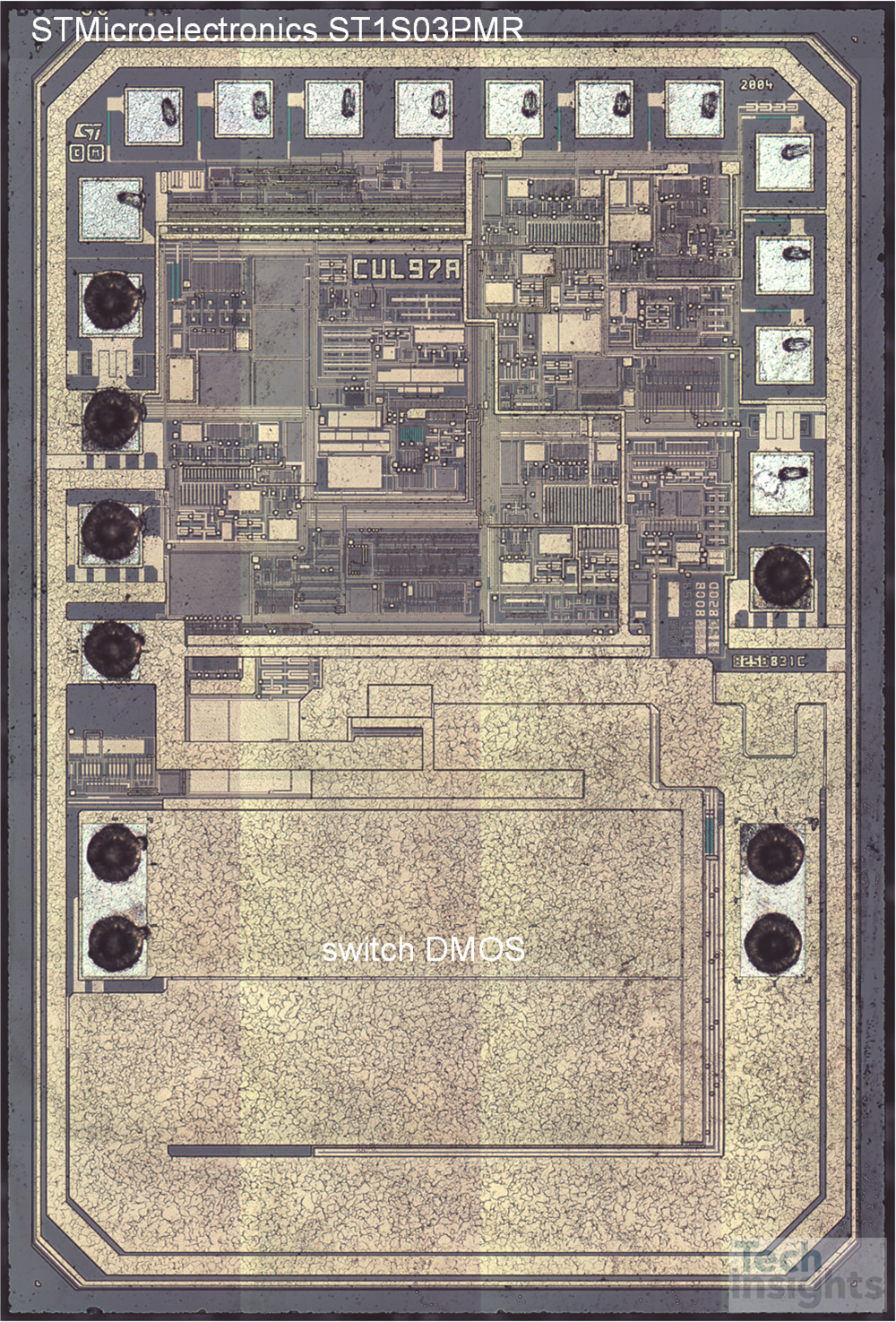

STMicroelectronics ST1S03 BCD6 Process Die Photograph

Figure 5 – STMicroelectronics ST1S03 BCD6 Process Die Photograph

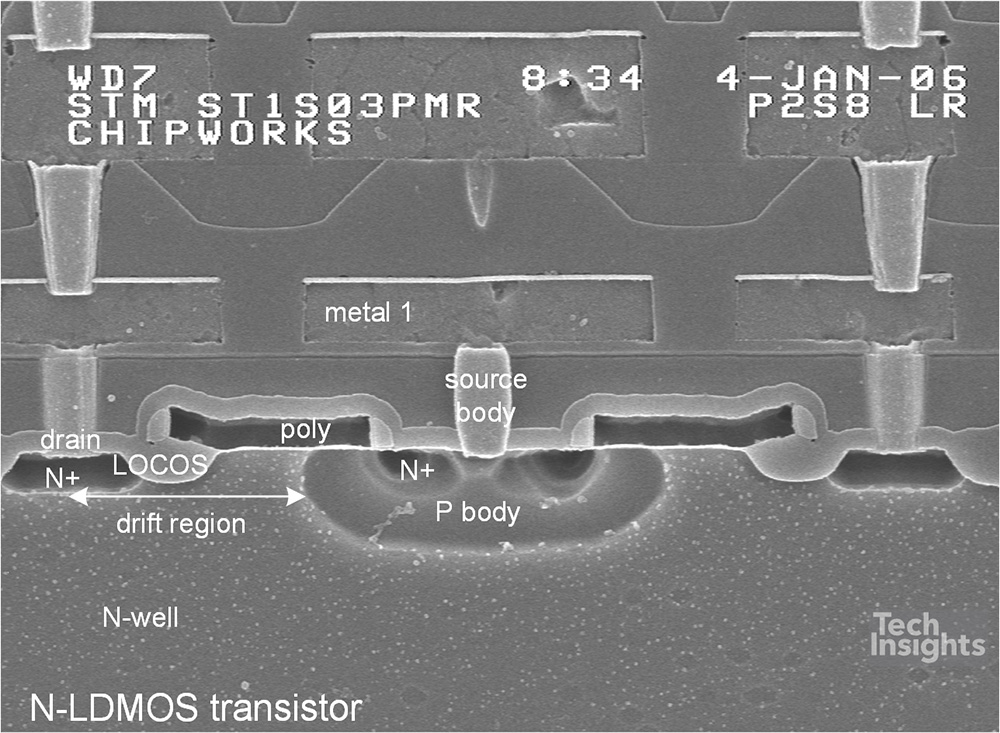

STMicroelectronics ST1S03 N-LDMOS Transistors

Figure 6 – STMicroelectronics ST1S03 N-LDMOS Transistors

The BCD8 technology was first released in about 2011. It featured 0.18 µm CMOS gates and four layers of CMP planarized Al metal, plus two layers of polysilicon with cobalt silicide, and shallow trench isolation (STI). Both N and P-type LDMOS transistors were found, plus bipolar transistors, poly-poly capacitors and 6T-SRAM memory. Figure 7 presents a photograph of the STMicroelectronics ST7570 BCD8 die. Complementary LDMOS transistors are located at the upper right corner. An example of the LDMOS transistors found on the ST7570 BCD8 die are shown in cross section in Figure 8. As can be seen in Figure 3 a high voltage silicon-on-insulator (SOI) version of the BCD8 technology is now also available, but has not yet been seen by TechInsights.

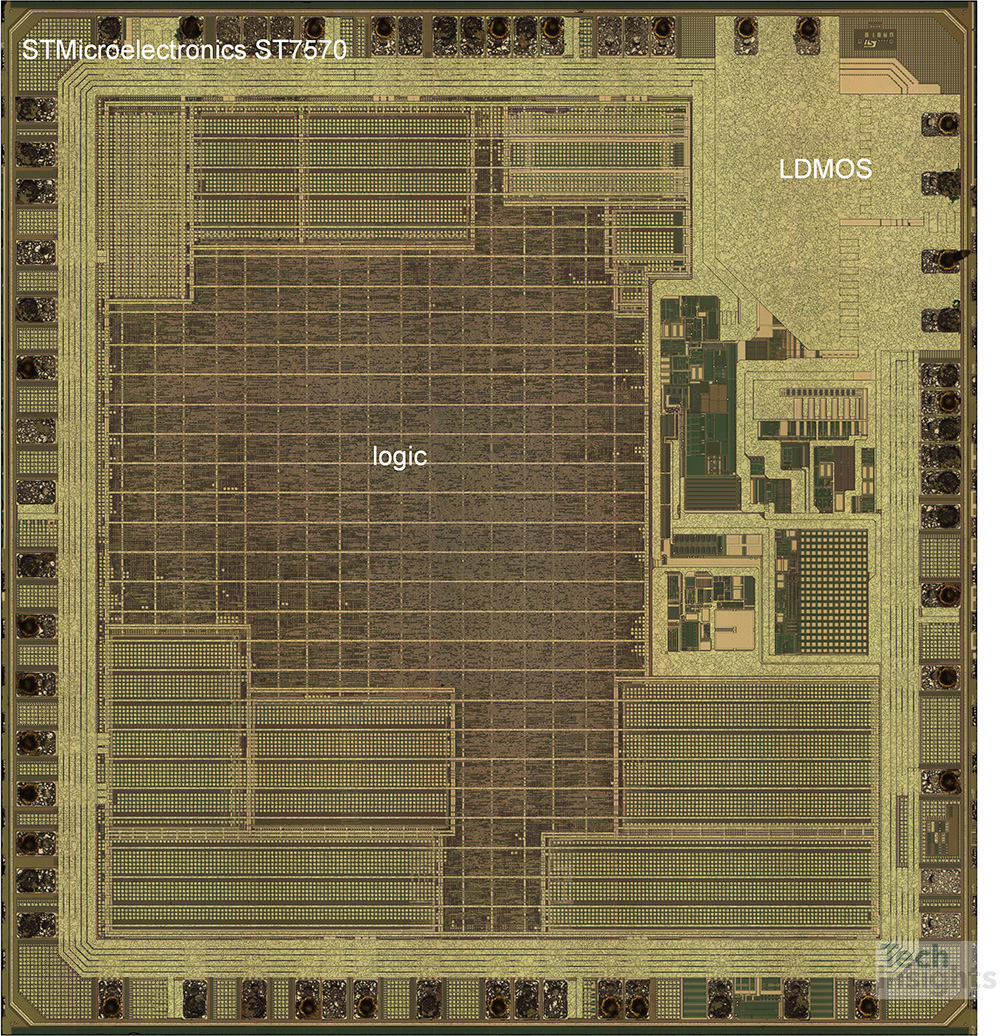

STMicroelectronics ST7570 BCD8 Die Photograph

Figure 7 – STMicroelectronics ST7570 BCD8 Die Photograph

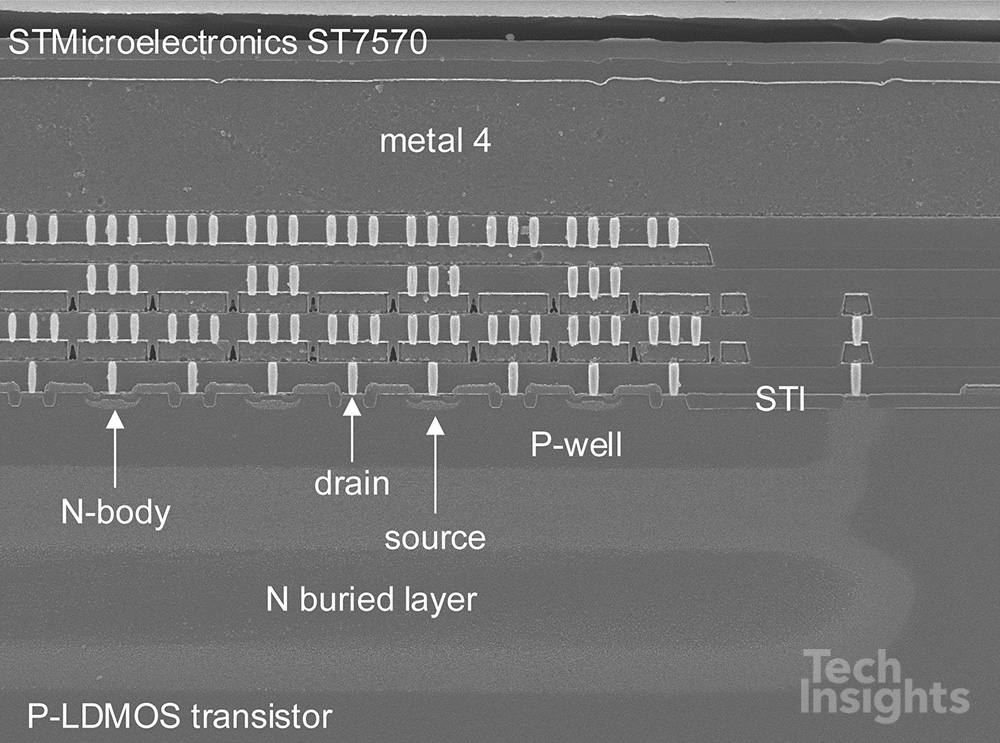

STMicroelectronics ST7570 P-LDMOS Transistors

Figure 8 – STMicroelectronics ST7570 P-LDMOS Transistors

The 0.13 µm BCD9 process was released to the market in 2015. The technology features copper metallization and integrated the now extensive array of BCD features, including N and P-type LDMOS transistors, MIM capacitors, 6T-SRAM and bipolar transistors. A photograph of the STMicroelectronics FSB2D48 BCD9 die is shown in Figure 9, while Figure 10 shows an example of the N-LDMOS transistor layout found on the FSB2D48 BCD9 die.

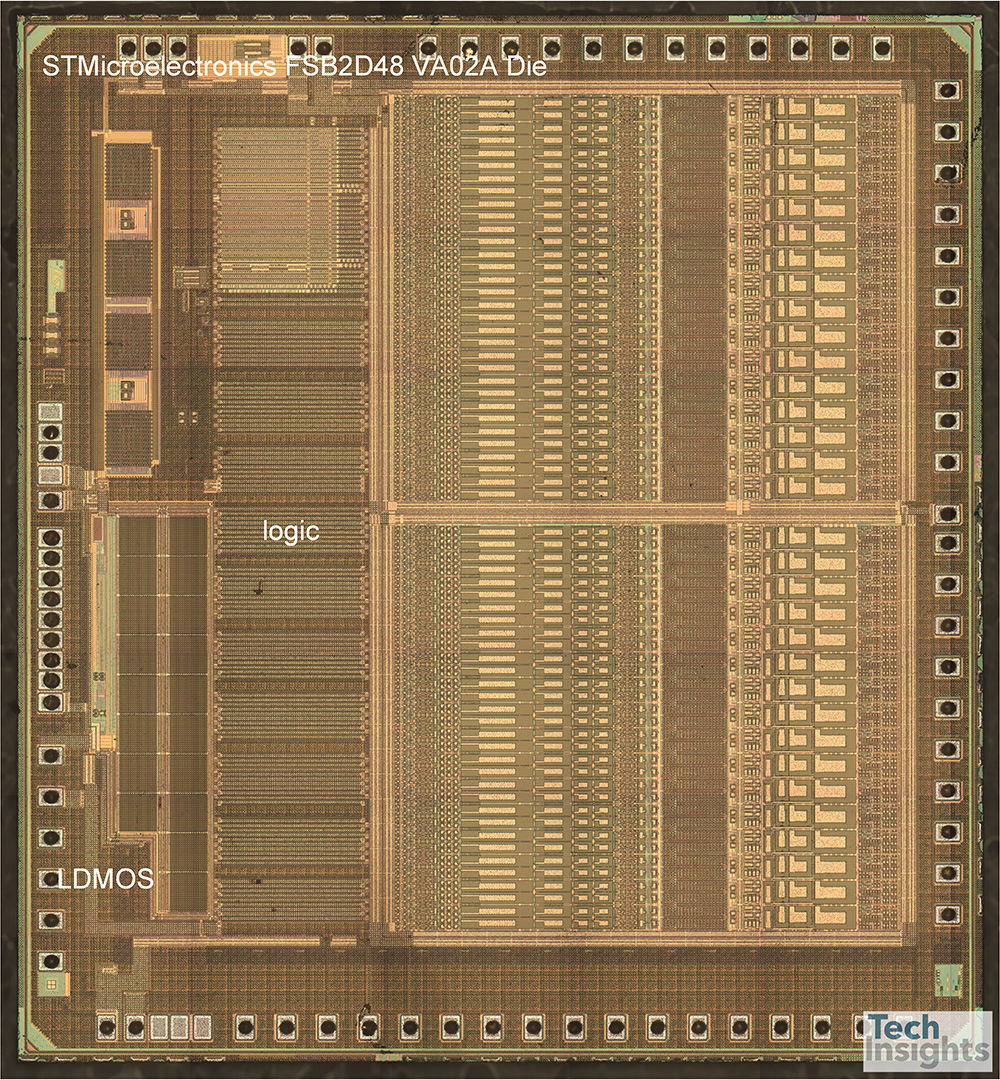

STMicroelectronics FSB2D48 BCD9 Die Photograph

Figure 9 – STMicroelectronics FSB2D48 BCD9 Die Photograph



STMicroelectronics FSB2D48 N-LDMOS Layout

Figure 10 – STMicroelectronics FSB2D48 N-LDMOS Layout

In 2015 ST announced the BCD9s technology [11] as the second generation of their BCD9 0.13 µm process technology. Our preliminary analysis finds several key new features, including the addition of a thick top redistribution layer (RDL). The observed minimum contacted gate pitch for the logic transistors was 0.6 µm suggesting 0.13 µm process, rather than the 0.11 µm claimed by ST for the BCD9s. The technology now integrates three types of isolation. Deep trench isolation (DTI) is used to provide isolation between the various blocks of circuitry, the CMOS logic uses STI and LDMOS power transistor blocks use LOCOS isolation. This is the first time that TechInsights has seen all three types of isolation used on a single die. Figure 11 presents a cross section view of the STMicroelectronics FDA801B-VYY BCD9s process die edge, which shows the DTI and the RDL features. TechInsights is planning further analysis of the BCD9s technology, which will be available in an upcoming report.



STMicroelectronics FDA801B-VYY BCD9s Process Die Edge

Figure 11 – STMicroelectronics FDA801B-VYY BCD9s Process Die Edge

BCD technology continues to be an area of active innovation in the power electronics market space. Unlike advanced CMOS, where the challenges are around the integration of the maximum number of MOS transistors into a given area, hence the relentless drive to smaller feature sizes, BCD technology is driven by the need to integrate a wide variety of different active devices onto a single die. This requires careful balancing of the disparate engineering needs of each device type.

Table 1 – STMicroelectronic BCD Technology Process Summary

  CUD16A
BCD
0500-4376-FS43
L6262S
BCD
SAR-0408-008
ST1S03
BCD6
PPR-0601-801
ST7570
BCD8
PPR-1101-801
L6390DTR
BCD OFF-LINE
PPR-1301-803
FSB2D48
BCD9
PPR-1501-801
FDA801B-VYY
BCD9S
PPR-1803-801
Year 2000 2004 2006 2011 2013 2015 2018
Mask Date 1999 1998 2004 2009 1998 2012 2014
Generation 1 µm 1 µm 0.35 µm 0.18 µm 3 µm 0.13 µm 0.11 µm (claimed)
Number of Metals 3 3 3 4 1 5 3
Number of polys 2 2 1 2 2 1 1
Silicide WSi - TiSi CoSi - CoSi CoSi
RDL No No No No No No Yes
Metal Type Al Al Al Al Al 4 Cu, 1 Al Cu
Contacts W Al W W Al W W
Vias W Al W W - Cu Cu
CMP No No Yes Yes No Yes Yes
Isolation LOCOS LOCOS LOCOS STI LOCOS STI LOCOS
STI
DTI
Power transistors DMOS DMOS LDMOS with LOCOS LDMOS with STI LDMOS with LOCOS LDMOS with STI LDMOS with LOCOS
Bipolar transistors NPN NPN and PNP NPN NPN NPN NPN and PNP NPN
Passives Resistors Resistors, poly capacitors and diodes Resistors, poly capacitors and diodes Resistors and poly-poly capacitors Resistors and poly-poly capacitors MIM capacitors and resistors Capacitors and resistors
SRAM No No No ST-SRAM No 6T-SRAM Yes
